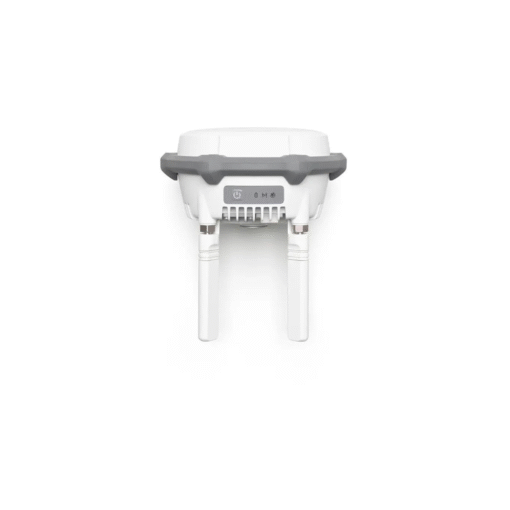

DJI D-RTK 3 Multifunctional Station

Multi-functional station yang terintegrasi dengan drone DJI untuk memberikan positioning accuracy yang tinggi sebagai base station, dan kini memiliki rover mode untuk pengambilan data koordinat untuk GCP/CP, serta menjadi relay station untuk meningkatkan jarak transmisi

Base Station Mode: Mendukung 5 GNSS Systems & menyediakan RTK broadcasting untuk beberapa drone sekaligus
Rover Mode: Pengambilan koordinat GCP/CP, terintegrasi dengan high precision IMU & tilt measurement
Relay Station Mode: Meningkatkan jarak transmisi di area sulit sinyal seperti di perkotaan atau perbukitan

In The Box
D-RTK 3 Multifunctional Station × 1
Spare OcuSync Directional Antennas × 4
USB-A to USB-C Cable× 1
Specifications
GNSS Frequency
GPS: L1C/A, L2C, L5
BDS: B1I, B2I, B3I, B1C, B2a, B2b
Galileo: E1, E5a, E5b, E6
GLONASS: L1, L2
QZSS: L1C/A, L2C, L5
L-Band
Rover Station Mode Accuracy
Static Measurement
Horizontal: 0.8 cm + 1 ppm (RMS)
Vertical: 1.5 cm + 1 ppm (RMS)
Tilt Measurement
Angle Range: 0°to 60°
Horizontal: 8 mm + 0.7 mm/° tilt (accuracy Max Transmission Distance (in Relay Station Mode, unobstructed, free of interference)
FCC:

15 km between the aircraft and the relay station
1 km between the relay station and the remote controller
SRRC:

12 km between the aircraft and the relay station
1 km between the relay station and the remote controller
CE:

8 km between the aircraft and the relay station
300 m between the relay station and the remote controller
Protection Rating: IP67 (station only)
Diameter: 163 × 89 mm (without OcuSync Directional Antennas)

Weight: 1.26 kg
