Native Vertical Shooting Generasi ke-2
Pengalih Mode Joystick, Kontrol Zoom/Gimbal
Lengan Sumbu Lapisan Teflon™, Penyeimbangan Lebih Halus
Kapasitas Beban 3kg, Sumbu Tilt Diperpanjang
Port Komunikasi RSA, Ekosistem Kontrol Luas
Pegangan Baterai Kapasitas Tinggi, Durasi Baterai Sekitar 2,5x Lebih Lama
Brand : DJI
Warna : Black
Tipe Aksesoris : Stabilizer
Lainnya
Peripheral
Accessory Port
Ronin Series Accessories (RSA)/NATO Ports
1/4″”-20 Mounting Hole
Cold Shoe
Video Transmission Port (USB-C)
RSS Camera Control Port (USB-C)
Focus Motor Port (USB-C)
Battery
Model: BHX711-3000-7.2V
Type: LiPo 2S
Capacity: 3000 mAh
Energy: 21 Wh
Max Runtime: 12 hours (Measured with the gimbal balanced in a level and stationary state. When the gimbal is in motion, the operating time will be reduced.)
Charging Time: Approx. 2.5 hours (Measured with a charger supporting 18W fast charging. It is recommended to use chargers supporting PD protocol.)
Suggested Charging Temperature: 5° to 40° C
Connections
Bluetooth 5.1
Charging Port (USB-C)
Ronin App Requirements
iOS 11.0 or above
Android 8.0 or above
Languages Supported by the Touchscreen
English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai
Working Performance
Tested Payload
3 kg
Maximum Controlled Rotation Speed
Pan: 360°/s
Tilt: 360°/s
Roll: 360°/s
Mechanical Range
Pan Axis: 360° continuous rotation
Roll Axis: -95° to +240°
Tilt Axis: -112° to +214°
Mechanical & Electrical Properties
Operating Frequency
2.400-2.4835 GHz
Bluetooth Transmitter Power
< 8 dBm
Operating Temperature
-20° to 45° C
Weight
Gimbal: Approx. 1066 g
Grip: Approx. 203 g
Extended Grip/Tripod (Plastic): Approx. 183 g
Upper and Lower Quick-Release Plates: Approx. 98 g
Dimensions
Folded: 245×255×75 mm (L×W×H, excluding camera, grip, and the Extended Grip/Tripod)
Unfolded: 370×191×189 mm (L×W×H, height includes grip and excludes the Extended Grip/Tripod)
DJI Ronin Image Transmitter
Connections
Power/Communication Port (USB-C)
HDMI Port (Mini HDMI)
RSS Camera Control Port (USB-C)
Expansion Port
Cold Shoe
Operating Frequency
2.400-2.4835 GHz
5.725-5.850 GHz
Weight
126 g
Dimensions
82×63×24 mm (L×W×H)
Transmitter Power (EIRP)
2.400-2.4835 GHz:
< 25 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
5.725-5.850 GHz:
< 25 dBm (FCC/SRRC)
< 14 dBm (CE)
Battery
Capacity: 2970 mAh
Compatible Charger: 5 V/2 A
Charging Time: Approx. 2.5 hours
Operating Time: Approx. 3.5 hours
Transmission Range
200 m (SRRC/FCC)
100 m (CE)
Latency
60 ms
Operating Current/Voltage
900 mA/3.7 V
Operating Temperature
0° to 45° C

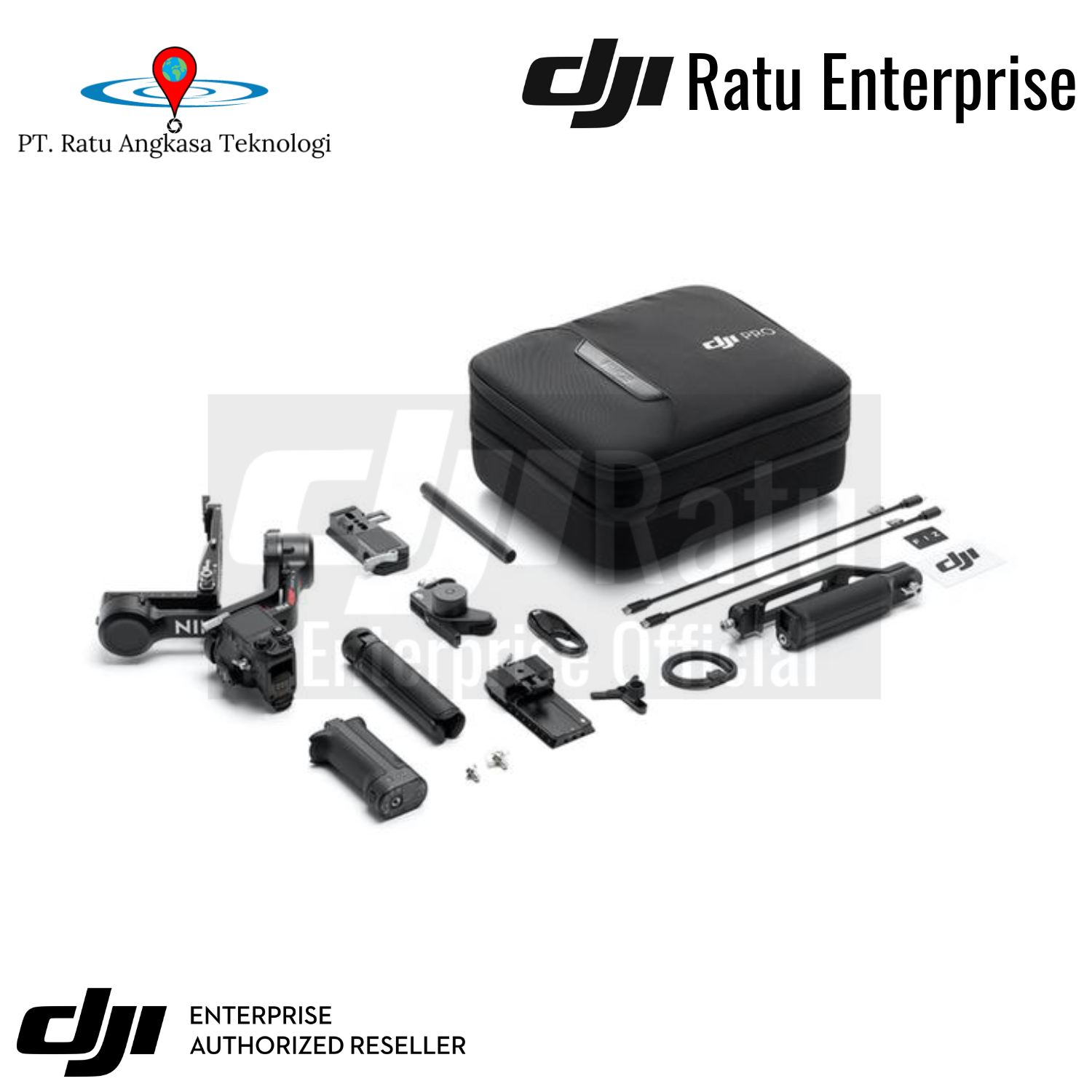

Kelengkapan di Dalam Dus :
Gimbal x1
BG21 Battery Grip x1
Quick-Release Plate (Arca-Swiss/Manfrotto) x1
Extended Grip/Tripod (Plastic) x1
Briefcase Handle x1
Lens-Fastening Support x1
Multi-Camera Control Cable (USB-C, 30 cm) x2
USB-C Charging Cable (40 cm) x1
Screw Kit x1
Carrying Case x1
Focus Pro Motor x1
Focus Pro Motor Rod Mount Kit x1
FIZ Sticker x1
DJI Logo Sticker x1
Focus Gear Strip x1
